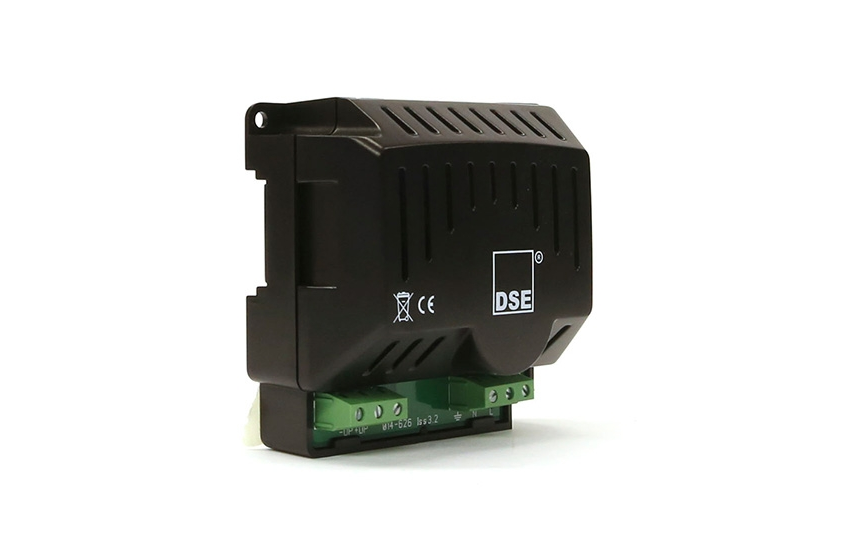

DSE 9150 Compact Battery Charger | 12 Volt 3 Amp

DSE 9150 Compact Battery Charger For Sale in Oregon The DSE9150 12 Volt 3 Amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections. Order your DSE9150 battery charger from Power Systems Plus! OVERALL SIZE 108 mm x 101 mm x 49 mm (4.2” x 4.0” x 1.9”) WEIGHT 0.16kg ADVANCED FEATURES Multi-Stage Charging • Constant current- maximum current available during charge recovery phase • Constant voltage • Chargers automatically return to float mode when charging is complete Low Output Ripple • Makes the chargers ideal for all battery types Full Protection • Reverse polarity protection, short circuit protection and current limiting • Automatic recovery after the removal of fault conditions Boost Mode • Boosts and equalises cell charge improving battery performance and life • Simple boost connection using on-board terminals Power Save Mode • Once the battery is fully charged the chargers switch to Eco-Power to save energy KEY BENEFITS • Suitable for a wide range of battery types • No moving parts for longer battery charger life • Switched mode design • Minimum 80% efficiency throughout full operating range Paralleling Feature • Multiple modules can be linked together to provide larger current output AC Supply Frequency Range: 48 Hz to 64 Hz Voltage Range: DSE9150: 90 V – 265 V (L–N) DC Output DSE9150: 3 A DC, 12 V DC at 13.7 V DC Ripple & Noise: <1% Efficiency: >80% Regulation: Line: <0.001% Vo Load: 1% Vo Protections Short Circuit Over Voltage Over Current Reverse Polarity Dimensions & Weight DSE9150: 108 mm × 101 mm × 49 mm (4.2” × 4” × 1.9”), 0.16 kg Temperature Range Operating: -30 °C to 55 °C (-22 °F to 122 °F) Storage: -40 °C to 85 °C (-40 °F to 185 °F)
