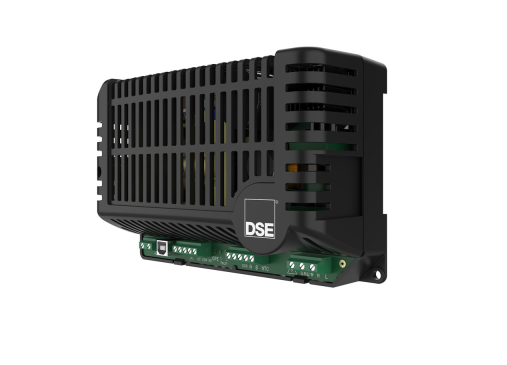

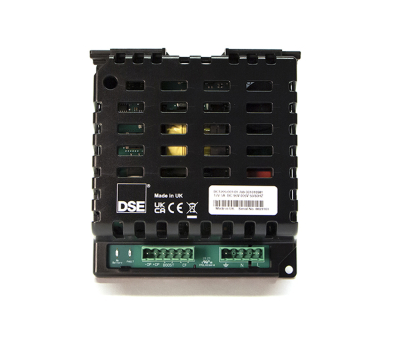

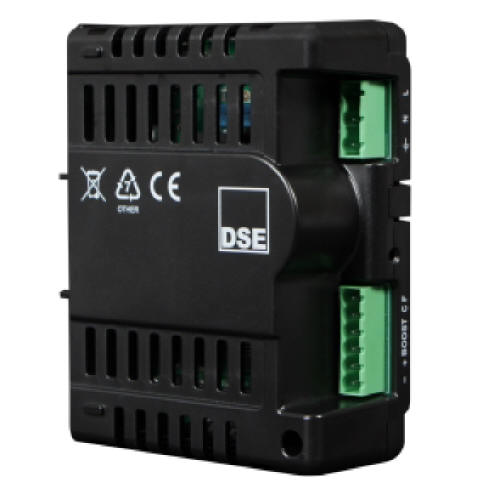

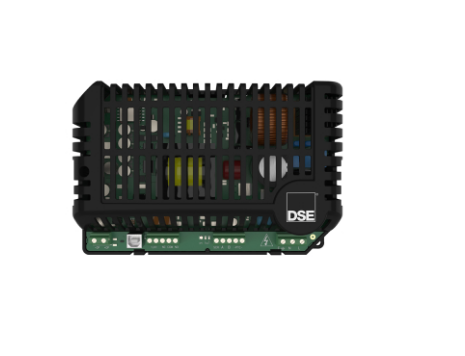

DSE BC2405 Battery Charger | 24V 5A

DSE BC2405 Battery Charger For Sale in Portland, Oregon The DSE9701 has been replaced by the DSE BC2405 battery charger. The DSEBC2405 is designed to be permanently connected to a battery, to ensure it maintains a full charge. Get the DSE BC2405 battery charger for reliable battery maintenance! LED indicators and robust design ensure constant monitoring and compatibility with various AC voltages. Perfect for industrial use. Get your Deep Sea Electronics BC2405 battery charger for sale today from Power Systems Plus in Hillsboro, Oregon! If delivery time is important, message us for availability before ordering. VERTICAL MOUNT 50 mm x 129.6 mm x 138.5 mm 2.0” x 5.1” x 5.45”) HORIZONTAL MOUNT 129.6 mm x 138.5 mm x 50 mm (5.1” x 5.45” x 2.0”) WEIGHT 0.3kg PRODUCT VARIANTS BC2405-01 – 24 Volt 5 Amp Battery Charger FEATURES • Wide AC input voltage • Manual boost adjustment • Constant current • Constant voltage • Automatic float mode return • Low output ripple to suit all battery types • Reverse polarity protection, short circuit protection and current limiting • Auto recovery on fault condition removal • Battery charger thermal de-rate facility • Cell charge boost & equalizing • Chargers switch to eco power mode when batteries are fully charged • Multiple modules can be linked together to increase current output • Battery voltage measurement BENEFITS • Small and compact size • Suitable for a wide range of battery types • No moving parts for longer battery charger life • Switched mode design • Charge fail output • Minimum 80% operating efficiency • Flexible mounting options • Position of serial label allows for simple charger identification when fitted inside a panel. • Can be used as a power supply. Specifications AC SUPPLY FREQUENCY RANGE 45 Hz to 65 Hz VOLTAGE RANGE 90 V to 305 V (L-N) DC OUTPUT DSEBC1205 OUTPUT 5 A DC 12 V DC DSEBC2405 OUTPUT 5 A DC 24 V DC RIPPLE AND NOISE <3% Vo EFFICIENCY >80% REGULATION LINE <1% LOAD <4% Vo PROTECTIONS Short Circuit Reverse Polarity DIMENSIONS Horizontal (W x H x D) 129.6 mm x 138.5mm x 50 mm 5.1” x 5.45” x 2.0” Vertical DIN Mounted (W x H x D) 50 mm x 129.6 mm x 138.5mm 2.0” x 5.1” x 5.45” Vertical Clip Mounted (W x H x D) 50 mm x 140.8 mm x 138.5mm 2.0” x 5.55” x 5.45” WEIGHT 0.4 kg OPERATING TEMPERATURE RANGE -25 °C to 80 °C (with de-rating) -13 °F to 176 °F STORAGE TEMPERATURE RANGE -40 ºC to 85 ºC -40 °F to 185 °F
